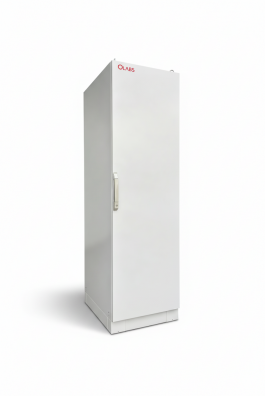

Olabs SHIELDCAB™ EMC Shielded Cabinet

Olabs SHIELDCAB™ EMC Shielded Cabinet is designed to protect critical electronic and network equipment from electromagnetic interference (EMI), radio-frequency (RF) interference, dust and water. Engineered for rugged indoor and outdoor environments, it supports reliable, uninterrupted equipment operation where both EMC performance and environmental protection are required.

PRODUCT OVERVIEW

FEATURES

DOWNLOAD

The SHIELDCAB™ DK-series combines an aluminium-zinc-coated steel enclosure with conductive sealing edges, electrically conductive door gaskets and fingerstock to provide effective shielding across a broad frequency range. Its integrated earthing design supports optimum potential equalisation throughout the cabinet.

Available in an IP65 configuration without fans and an IP55 configuration with ventilation fans, the cabinet can be customised in width, depth and rack height to suit different applications. Its shielding properties have been independently tested in accordance with IEC 61000-5-7.

Broad-range shielding against EMI and RF interference
Aluminium-zinc-coated steel enclosure with conductive, paint-free interior contact surfaces
Conductive door gaskets and fingerstock for enhanced attenuation performance
Integrated earthing design for optimum potential equalisation
IP65 protection without fans; IP55 configurations available with ventilation fans
Suitable for rugged indoor and outdoor installations
Standard widths of 600 mm or 800 mm, depths of 800 mm or 1,000 mm, and rack heights of 37U, 42U
or 45U; customised dimensions are available
Maximum loading capacity of up to 1,500 kg
Optional EMC ventilation fans, EMC cable glands, supporting base frame, base plate, L-brackets, fixed
shelves and external hood
Compliance with RoHS, IEC 60529, IEC 61000-5-7, and IEC 60297-3-100 / EIA-310-E
